What is Corona resistant wire?

High corona discharge magnet wire refers to magnet wire that is specifically designed and manufactured to withstand corona discharge at high voltages. Corona discharge is a phenomenon that occurs when an electrical conductor, such as a wire, is subjected to a high voltage, and the surrounding air ionizes and produces a visible discharge or electrical sparks.

200 polyamideimide, 200C

More details show

CORE FEATURES

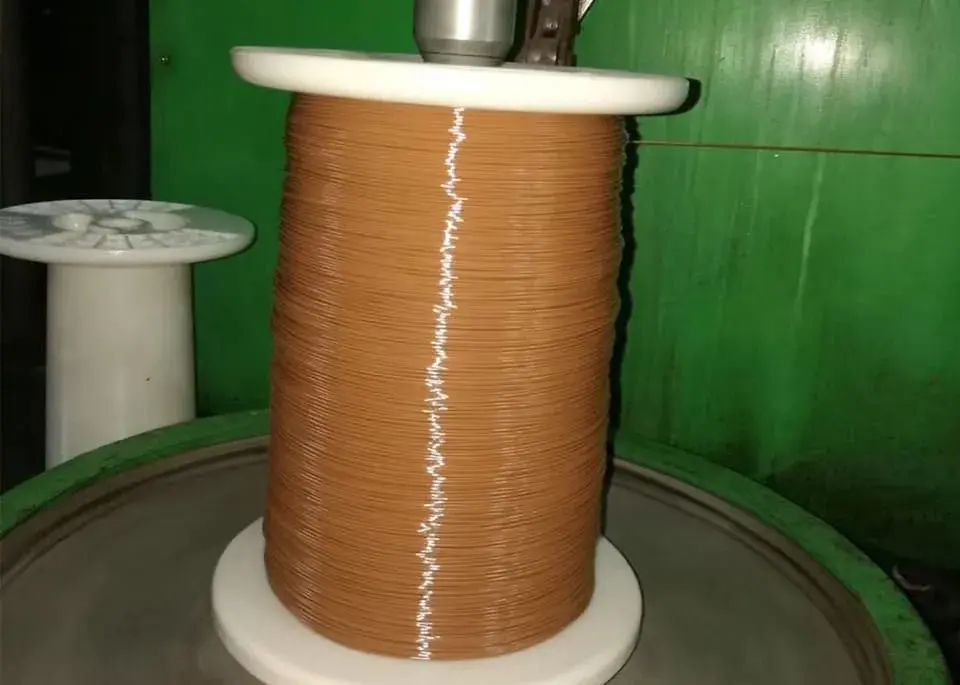

Corona-Resistant Enamels Wire is special insulated magnet wire used for special conditions of transformer windings and motor windings.

Insulation Material: High corona discharge magnet wire typically uses advanced insulation materials with superior dielectric properties.

Dielectric Strength: The insulation material's dielectric strength must be carefully chosen to ensure it can withstand the high electric field strengths associated with high-voltage applications.

Insulation Thickness: Thicker insulation can provide better corona resistance by reducing the electric field intensity near the conductor's surface.

Smooth and Clean Surface: The wire's surface should be smooth and free from contaminants or defects that could promote corona discharge.

Voltage Rating: High corona discharge magnet wire should be rated for the specific high voltage at which it will operate.

Environmental Resistance: can be used in moisture, heat, and UV radiation.

High corona discharge magnet wire is commonly used in applications such as transformers, high-voltage coils, and other electrical devices that operate at elevated voltages.

Freely Inquiry the Corona-Resistant Enamelled Wire, the wire price / rate has competitive. High quality used for electrical equipment.

If you are interested in our products, you can contact us in the following ways.

Request Our Latest Price

Product Parameters

LP specializes in enamelled flat wire and enameled round wire, paper covered copper/aluminum winding wire choose high quanlity and high conductivity resistance pure copper and aluminum.

Corona-Resistant Enamel Wire

For other metals: Please inquire
Clients can custom the size according to requirements

Standards

LP produces enamelled wires according to many different specifications.
GB 6109
IEC 60317
NEMA 1000

Download the Data Sheet

Name	Corona-Resistant Enamel Wire
Conductor	Copper
Diameter	Round diameter: 0.2-2.5mm
Thermal Class (℃)	200 (Class C)
Insulation thickness	Polyamideimide
Standard	IEC,NEMA,GB,JIS
Packing	30kg ~150kg ply-wood spool (250400 /250500/ 250600 / 250730)
Application	Variable frequency motor, speed regulating motor, lifting motor, elevator motor and other fields.

Product Packaging

Plastic spool or wooden spool, flat wire length are customizable;

The usual spool specifications :

PT-4, PT-10,PT-25,PT-30,PT-60,PT-90,PT-200 or according to customer requirement

About The Packing, We Can According To Customers’ Requirement!

What is the use of Corona resistant enamel wire?

Corona-resistant magnet wire, also known as high-voltage magnet wire, is designed to withstand corona discharge at elevated voltages. This type of wire is commonly used in various applications where high-voltage electricity is involved and where preventing corona discharge is essential.

Power Transmission and Distribution

Transformers: Corona-resistant magnet wire is often used in the winding of high-voltage transformers.

OUR High-quality PRODUCTS

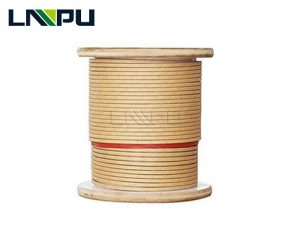

Paper Covered Copper/Aluminum Winding Wire

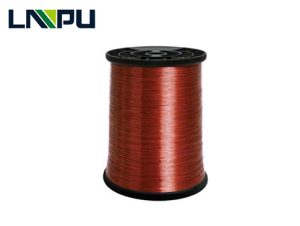

Enameled Round Aluminum Wire

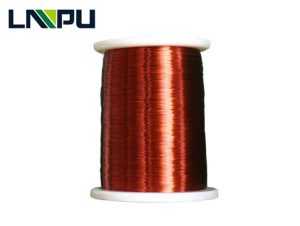

Enameled Coated Round Copper Wire

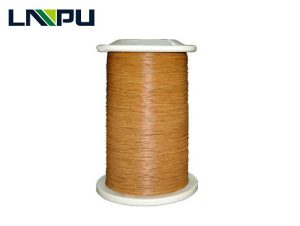

Fiberglass Covered Copper/Aluminum Winding Wire
